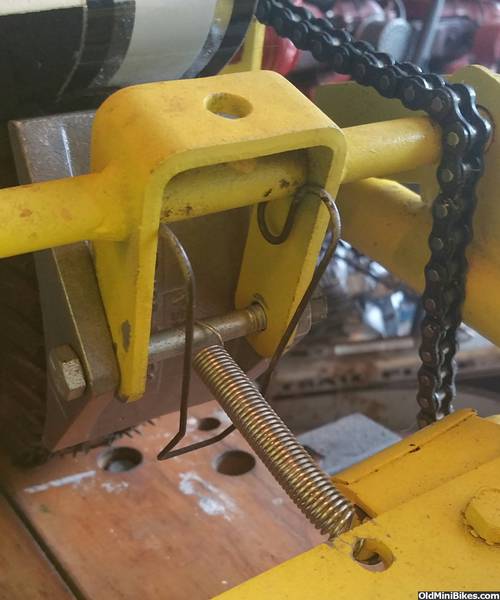

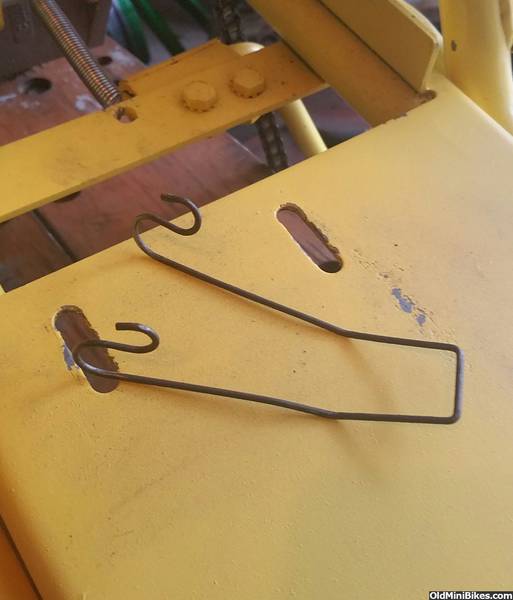

Sears Roper scub brake clip
I have several birds w/scrub brakes and I've never seen that clip ? Not arguing that it doesn't belong just ignorant to it . Mine just kinda float loosely and no problems I have however thought of welding a small aluminum eyelet to top back side of pad and attach spring to that , all problems solved !

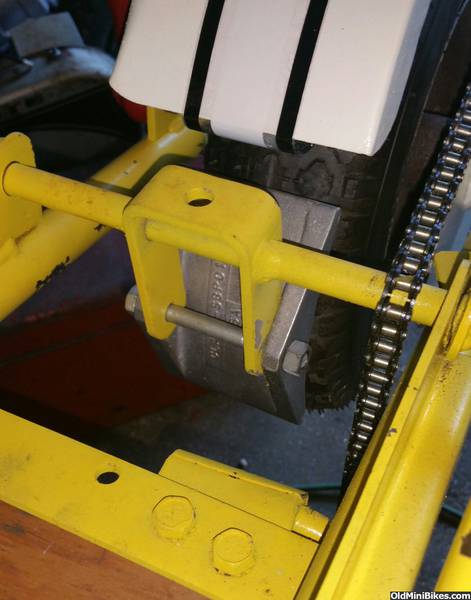

It looks like you have it positioned correct but you may want to try having the lower part in front of the bolt that holds the pad onto the arm rather than behind it. That way it would keep the lower portion of the pad pressed inward and the top away from the tire. This would keep the pad from say catching the tread of the tire since it's travelling towards the brake pad.
Yeah, I was just hanging it there for the pic but as you say putting it behind the bolt will cause it to push against the lower part of the pad. So you agree it should hang on the brake arm and not the bolt? I'd have to pry the "hooks" open slightly to do that. Putting it on the bolt makes a lot of this clip hang below the pad. Therefor touching nothing. Put its possible I have the wrong pad on this bike and it's supposed to be longer? I did pick up a few different ones along the way. I have an El Tigre that uses these too. I think there is a longer one in my box of parts.
There is no picture floating around of this? Does anyone have a survivor bike with one of these on? Thinking I'll just pull the top of the pad back with another spring until I see one.
There is no picture floating around of this? Does anyone have a survivor bike with one of these on? Thinking I'll just pull the top of the pad back with another spring until I see one.
I remember years ago the late GREAT OldMiniBikes member "Yellowhand" (RIP) telling me that they originally came with a torsion spring to keep the tire from pivoting into the tire tread. He also said that they did not last very long which could explain why you do not see one, even on survivor bikes. On my son's Sears Ropers we attached a very small tension (stretch) spring toward the top of the scrub pad and it worked very good. You have to play with the spring size, length and tension a bit to get it right.Too much tension and you will pivot the BOTTOM of the scrub pad into the tire.I remember that there was thread on this topic a few years back and various members posted photos of what they did.
Michael
Michael
Another viable solution which I have done on a custom scrub brake on a stretched Cat using a Bird pad was to simply drill a 1/4" hole just above the bolt mounting hole , drill thru pad and thru the steel flat bar and insert a 1/4" bolt to lock pad into a fixed position , worked great for me ! Funny Michael , that's why I have 4 different Birds and have never seen that clip :doah:

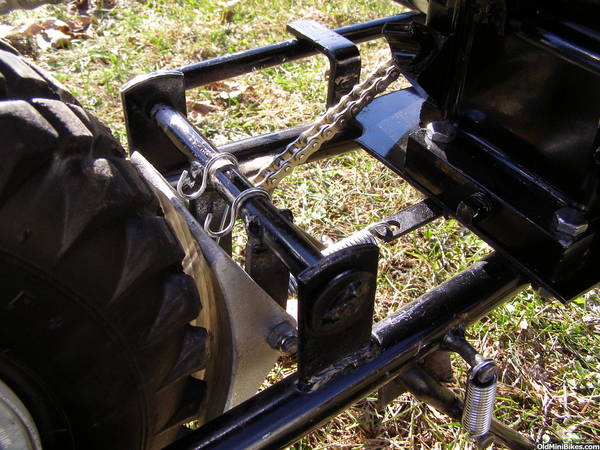

http://www.oldminibikes.com/forum/mini-bike-discussion/79272-roper-sr-5-a.html
Check out this old post
Check out this old post
Thanks all very good solutions. I was just hoping, since I have the clip, I could see how its used. I'll prob do it like one of these ways initially until I find out how the clip goes. Actually Im sure AJax is right and I'll be doing it like that. In the meantime I think I'll have copies made of this thing. That is, if anyone is interested?
