purchase in process. Intek 206 6Hp

[LONG]

looking to get this engine to replace the 5 Hp flat head.
Pros/ Cons. looks like there are a ton of parts and reference on this site. I'm too lazy to look.

can throttle be easily adapted? fab own brackets, or is there a cheap aftermarket?

this will be going on a sensation mb-6 with jackshaft.



[CarPlayLB]

show us a pic of the carb! That will help.

That engine is nearly the same as the Briggs Animal and most of the parts interchange.



[davidlamb78]

I always prefer an OHV over a flathead on a modern mini. Just my opinion, and I know there are some folks on hear that love their flatheads. That's fine. Different strokes for different folks. Now, I love the looks of an old flathead on an old bike, don't get me wrong.



[rustINpeace]

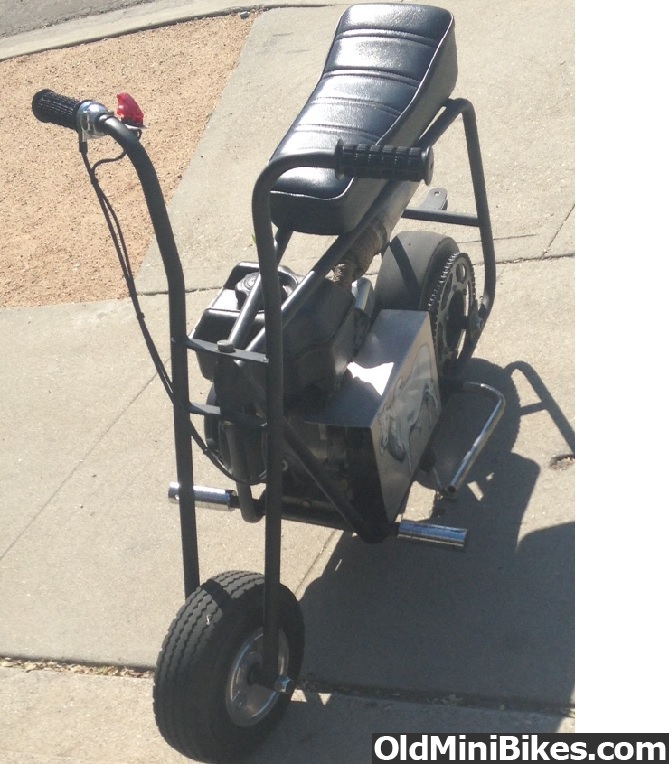

I have that exact motor on a large el-cheapo mini I use as a pit bike/Jr. Dragster tow vehicle. I fab'd my own linkage - I can get a picture, but I have to take the tank off. Give me a couple days.



[rustINpeace]

Here it is.



[trinik7597]

easiest way is to put on an intake manifold and a walbro . all the animal parts fit that motor



[thcowboy]

The Briggs animal and world formula are based off that engine - the 206cc.



[LONG]

thanks guys, I do not have the engine in hand yet. hope its not too tall.



[massacre]

Are these dual bearing motors? Excuse the noob question lol thanks.



[trinik7597]

Are these dual bearing motors? Excuse the noob question lol thanks.

mine was not block was bushing only the side cover had a bearing



[massacre]

mine was not block was bushing only the side cover had a bearing

OK thanks, I thought some of the I/C motors were dual bearing but I could be way off lol



[thcowboy]

Yes, a couple I/C bearing motors were built.



[rustINpeace]

I have that exact motor on a large el-cheapo mini I use as a pit bike/Jr. Dragster tow vehicle. I fab'd my own linkage - I can get a picture, but I have to take the tank off. Give me a couple days.

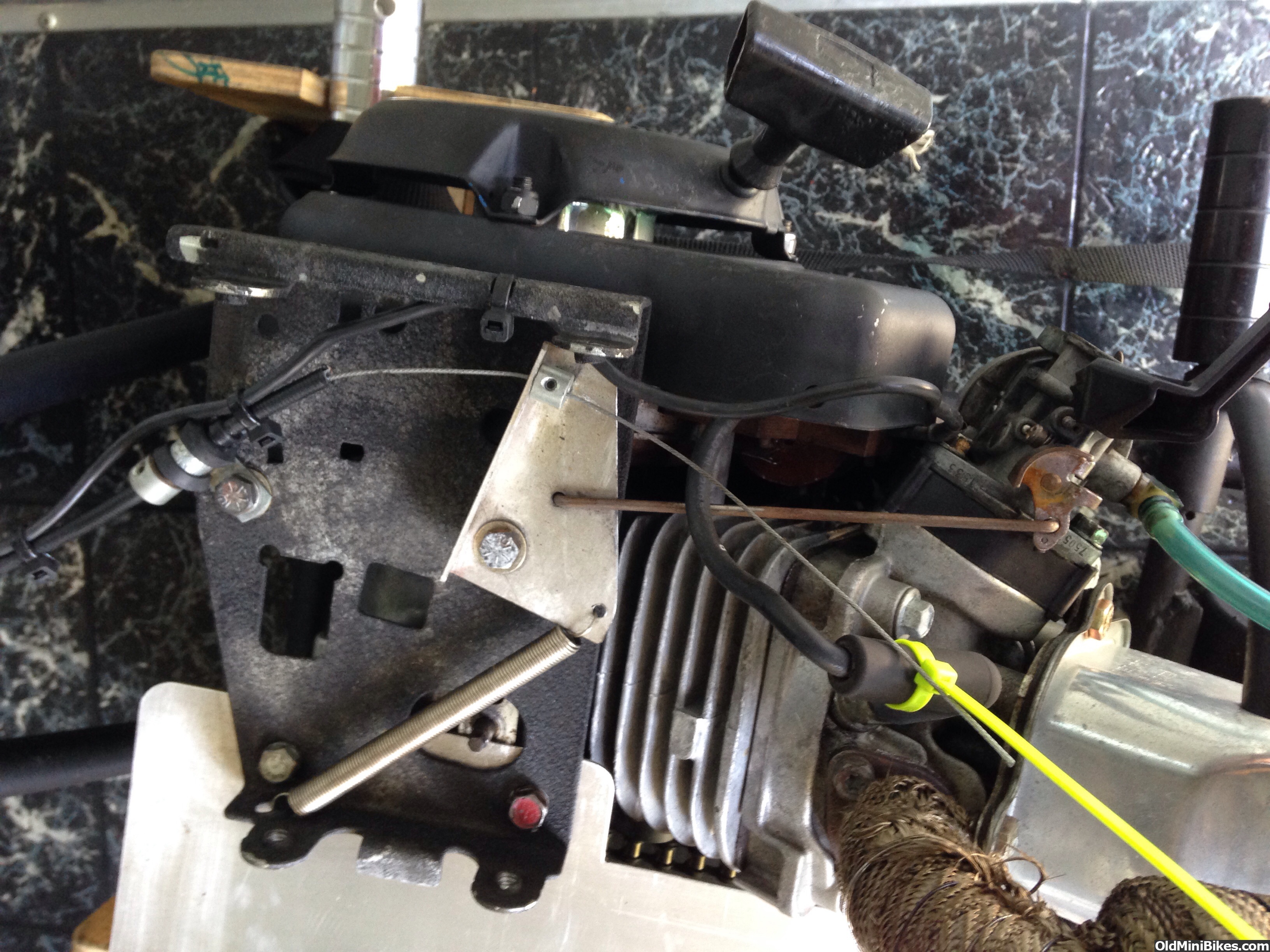

View image in gallery​

The linkage "under drives" -for lack of better words-the throttle. For example for very 1/4 inch or so the throttle handle is twisted, it only pulls about an 1/8 of an inch on the carb.



[125ccCrazy]

Yes, a couple I/C bearing motors were built.

Correct..I had a couple of those engines..the last one I built with WF parts... very nice engines to build..



[LONG]

sweet



[dakota]

I have one in my Avatar Mini Bike. its like a mini hot rod.



[LONG]

thanks again guys!. bought it, rebuilt carb, and mounted. this was a direct bolt on and everything lines up. would not fit with fuel tank. so, i'll have to find one to mount. runs great and I think there will be plenty of power. just been cruising with hand lever for throttle......I started a PROJECT thread. Cheers!



[Full Throttle]

Long, i manage to pick up 3 of those 206cc engines, one had a electric start. Gonna take one of them and build a hopefully nice engine. A guy i know is supposed to sell me a animal head. He says the animal head is different the the stock intek 206 head. Haven't got the head yet but is sending me pix of it before i buy. Gonna put a .308 cam and billet rod in it and PZ22 carb with manifold and see if it will keep up with my clones and predators. Can't wait !



[LONG]

Long, i manage to pick up 3 of those 206cc engines, one had a electric start. Gonna take one of them and build a hopefully nice engine. A guy i know is supposed to sell me a animal head. He says the animal head is different the the stock intek 206 head. Haven't got the head yet but is sending me pix of it before i buy. Gonna put a .308 cam and billet rod in it and PZ22 carb with manifold and see if it will keep up with my clones and predators. Can't wait !

sounds like a lot of fun. I love tinkering on stuff. just now getting into these! a lot to learn.



[BikeWorm]

yep, should be a block bushing with a bearing on the side cover. Also, it is probably a cool bore block
