does a minibike twist throttle already have built in springs?

[azndude3141]

if no, then how would i attach a spring to the engine to return it to idle everytime i let off the accelerator. im a little confused. (yeah, im a noob and this is my first build, thats why im asking a question like every 10 mins. lol)

oh and as always, THANKS FOR YOUR HELP!!! :smile::wink::smile::wink::smile:



[71dodge]

here ill take a pic



[GTO]

Put the return spring at the engine/carb and make sure it's enough. :wink:



[71dodge]

ok se in the pic were i circled it thats a spring that runs off of the accelarator carb. i ran a srping from the accelarator on the carb to a custom bracket i make then i used a hose clamp and clamped the one end of the bracket to the exahust and then drilled a hole in the bracket put the one end of the spring in the bracket and the other running to the carb it works like a dream and retrackes perfectly it took 10 minutes to make and 5 minutes to adjust it and the bike idles and the throttle retracts PERFECT hope this helps


View attachment 14405



[71dodge]

its not the best pic because the carb was in the way and i was cold lol but here

View attachment 14406



[azndude3141]

its not the best pic because the carb was in the way and i was cold lol but here

View attachment 14406

i understand it now, what you did is you got a bent pice of metal, connected the spring to it, and then clamped it to the muffler with the spring. OK thx a ton!!! :smile::smile::smile::smile::smile:



[71dodge]

yep thats what i did and no prob



[george3]

You don't have to do it exactly like that. That was just a pic. so you would get a clue.



[minibikedude]

What kind of engine are you trying to hook your throttle up to. Randy has a post how to hook up a throttle for Tecumseh started and theres pics for the clones also out there. I have Tecumseh's and clones throttle set ups in my photos also.



[azndude3141]

What kind of engine are you trying to hook your throttle up to. Randy has a post how to hook up a throttle for Tecumseh started and theres pics for the clones also out there. I have Tecumseh's and clones throttle set ups in my photos also.

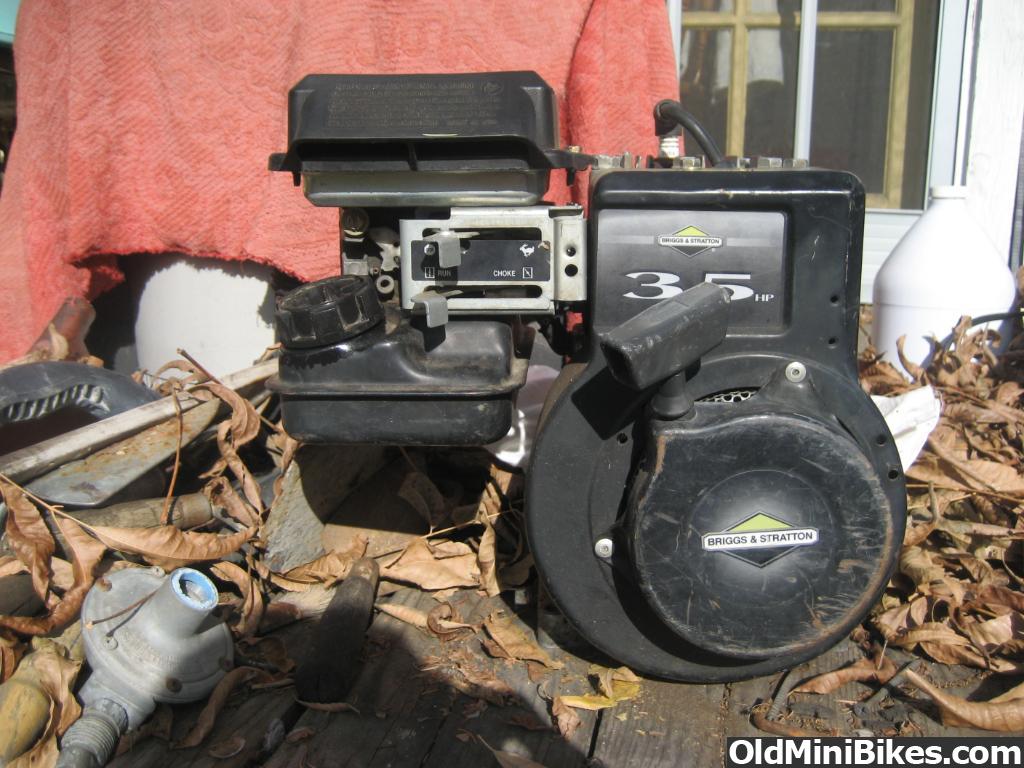

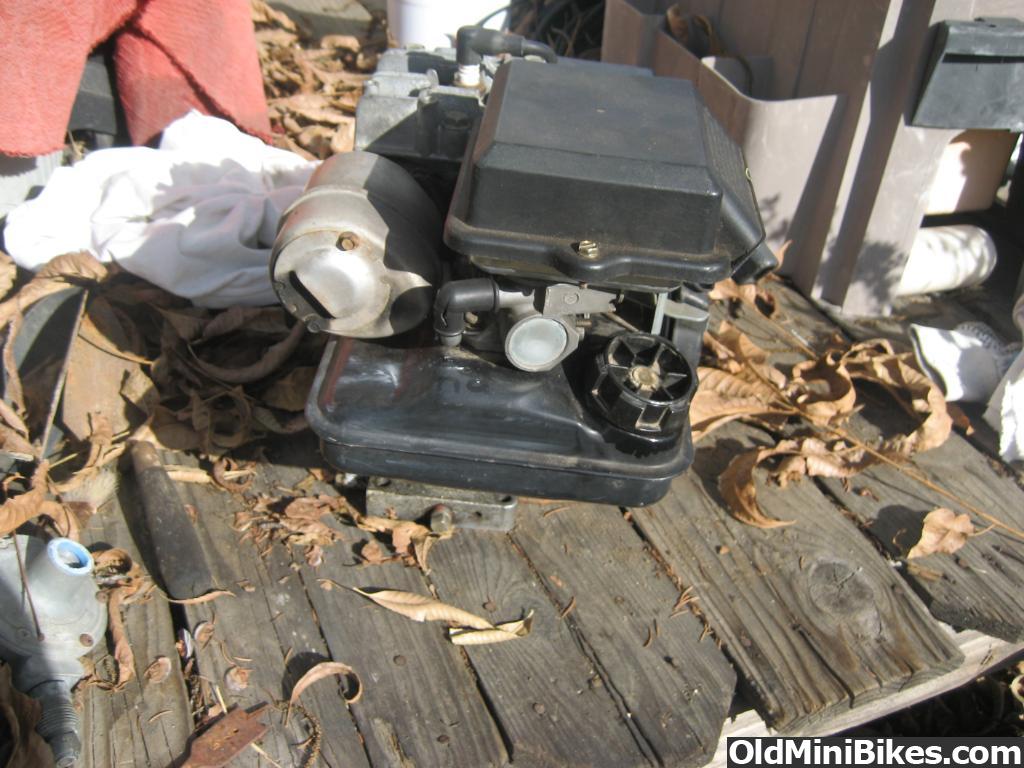

this is what im hooking it up to



[71dodge]

yep just like my pics a briggs flat head just go by my pics if you like that disign or you can always try a diffrent way



[jeep2003]

If your running it with the goveroner still hooked up the throttle cable goes to the bracket under the tank



[badtec]

Even if there are/were throttles made that would retract on their own, does not guarantee that the carb will slam shut. Scott.



[Bonanza Bryan]

71 Dodge does it exactly like me.



[71dodge]

71 Dodge does it exactly like me.

yep it works well and looks pretty good so what the heck lol



[oldfatguy]

I have run the throttle cable through the spring,it is a pain to get the cable into the clamp and tighten the screw with the spring on the cable but it does work very well. use a small washer if you need to stop the spring from sliding over the cable.
