Back on my project

J

JT456

New Member
#1
#1

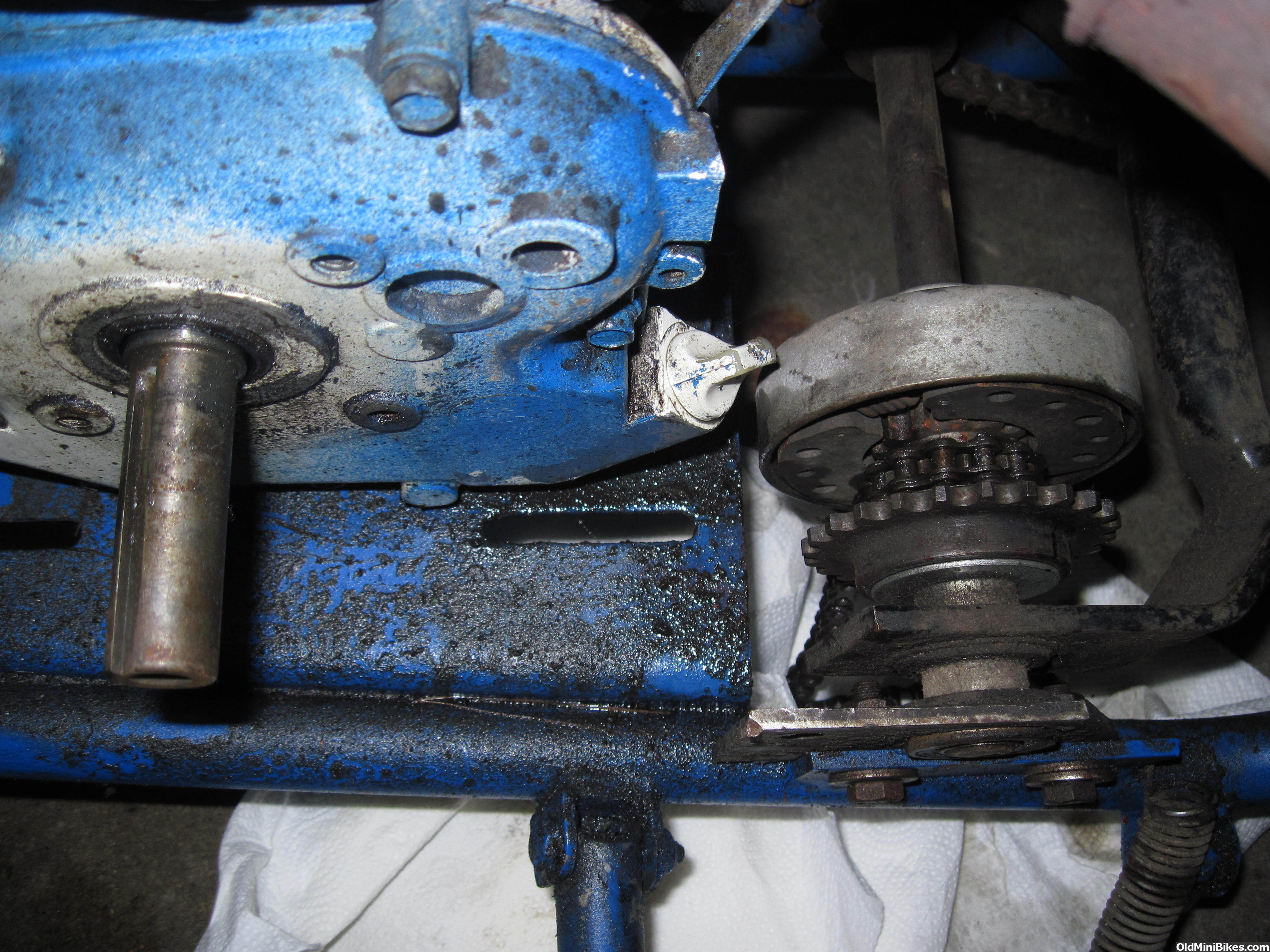

Its been awhile, but I'm back on my project again. It's a trail blazer I think, just by looking at the sticker on the front of the bike. I'm wanting to get it running for my kids to ride this summer. We had a Rupp as a kid, and it was lots of fun. Back to the project - I got it running, and now need to order a clutch for the motor. I've put some pics in my album for others to look at. Don't mind the mess in the garage. The motor has a 3/4" shaft. Looking at the pic, how can you figure out what clutch and gear I need? Any ideas?

cheezy1

cheezy1

#2
#2
It should have a 2-speed Comet clutch set-up. It would have dual chain and gears from primary clutch to rear jackshaft secondary clutch. Seems you have the secondary..now you need the primary (front clutch).

cheezy1

cheezy1

#4
#4
Looks like a normal clutch..but has 2 gears on it instead of one. And put a wanted add in the classifieds is your best bet. Or E-bay. They are not cheap though..so be prepared to spend a lil cash for one.

roccosbike

roccosbike

#5
#5
I have a full suspension Trail horse that I plan on putting an HS40 with a Comet two speed on also.The Comet clutch is hard to find but I believe you can still get the Max Torque clutch and it should work with your secondary unit.Pics take lots of pics of your build.

J

JT456

New Member
#7
#7
Hi SimpleTom, I'm embarrassed to say that I think I talked to you before on here and now I'm finally getting back to working on this project. You helped me out in the past with pictures. I live in Kaukauna, WI.

Fat Boy

Fat Boy

New Member
#8
#8
BMI Karts Have the two speed clutches for 59.99 part number 400905 :thumbsup:

I have a few of these bikes with the two speed on them and I used this clutch on one of them .:thumbsup:

SimpleTom

SimpleTom

#9
#9
Ah yes, Kaukauna. Just east of Appleton. Check out the events section. There are a couple shows that are taking place this summer near you that you should attend. Maybe I'll see you there. :thumbsup:

Outlaw Ace

Outlaw Ace

#10
#10
Once you have gotten the 2 speed setup cleaned up and working it will amaze you how well it works and how fast the bike will be. I have a standard jackshaft setup on my Trailblazer and it woke the bike up, I ride mine near daily but try to ride the others some too.


J

JT456

New Member
#19
#19
Anyone know how a dual sprocket clutch works? Is the clutch engaging both sprockets simultaneously? Not sure how this would work on my minibike I'm assembling. Currently on the jackshaft there is a 24 tooth gear, that immediately engages in the forward direction, and slips in reverse. And there is a 12 tooth comet clutch as well. How would the clutches work together, or engage and disengage. :shrug:

Fat Boy

Fat Boy

New Member
#20
#20
:thumbsup:Yes both sprockets turn together and when it shifts into second the large gear freewheels and the smaller gear [clutch on J S] speeds bike forward , works great on the several I have

Last edited:
